American Industrial Heat Transfer| Product | Style | Series | Arrangement |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | ABR-1608 | One Pass |
-Download
Datasheet

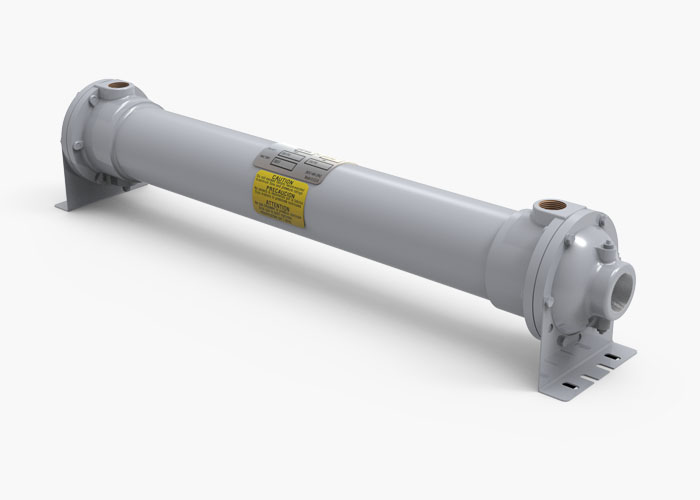

Note: Featured picture is of a stock unit, exact unit details may vary from part number ABR-1608-D6-SP-CNT.
Product Overview
P/N:
ABR-1608-D6-SP-CNT
Shell and Tube Series:
ABR-1608
Manufacturer:
American Industrial Heat Transfer
Configuration
Tube Side Passes:
One
Baffle Spacing:
9"
Tubing Diameter:
0.375
Shell Side Connections:
3" NPT
Tube Side Connections:
5" NPT
Materials of Construction
- Tubes: CuNi
- Tubesheet:
- Shell: Steel
- End Bonnets: Cast Iron
Rating
- Maximum Shell Pressure: 300 psi
- Maximum Tube Pressure: 150 psi
- Maximum Temperature: 300F
