American Industrial Heat Transfer| Product | Style | Series | Arrangement |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | CK-505 | Two Pass |
-Download
Datasheet

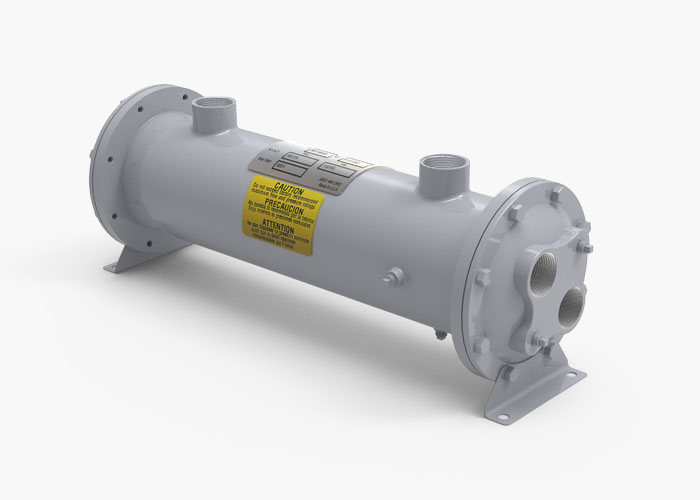

Note: Featured picture is of a stock unit, exact unit details may vary from part number CK-505-TP.
Product Overview
P/N:
CK-505-TP
Shell and Tube Series:
CK-505
Manufacturer:
American Industrial Heat Transfer
Configuration
Tube Side Passes:
Two
Shell Side Connections:
0.5" NPT
Tube Side Connections:
0.75" NPT
Materials of Construction
- Tubes: Copper
- Tubesheet:
- Shell: Steel
- End Bonnets: Cast Iron
Rating
- Maximum Shell Pressure: 300 psi
- Maximum Tube Pressure: 150 psi
- Maximum Temperature: 300F
