Quotes - Engineering - SalesSTA-1036-3-4-TP
American Industrial Heat Transfer| Product | Style | Series | Arrangement |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | STA-1036 | Two Pass |
-Download
Datasheet

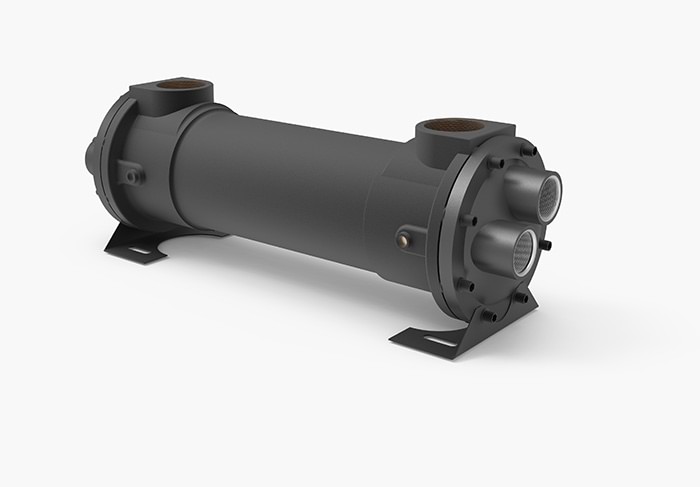

Note: Featured picture is of a stock unit, exact unit details may vary from part number STA-1036-3-4-TP.
Product Overview
P/N:
STA-1036-3-4-TP
Shell and Tube Series:
STA-1036
Manufacturer:
American Industrial Heat Transfer
Configuration
Tube Side Passes:
Two
Baffle Spacing:
3"
Tubing Diameter:
0.25
Shell Side Connections:
1.5" NPT
Tube Side Connections:
1.5" NPT
Materials of Construction
- Tubes: Stainless Steel
- Shell: Stainless Steel
- End Bonnets: Stainless Steel
Rating
- Maximum Shell Pressure: 300 psi
- Maximum Tube Pressure: 150 psi
- Maximum Temperature: 300F
