Quotes - Engineering - SalesSTS-1601-E10-FP
American Industrial Heat Transfer| Product | Style | Series | Arrangement |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | STS-1606 | Four Pass |
-Download
Datasheet

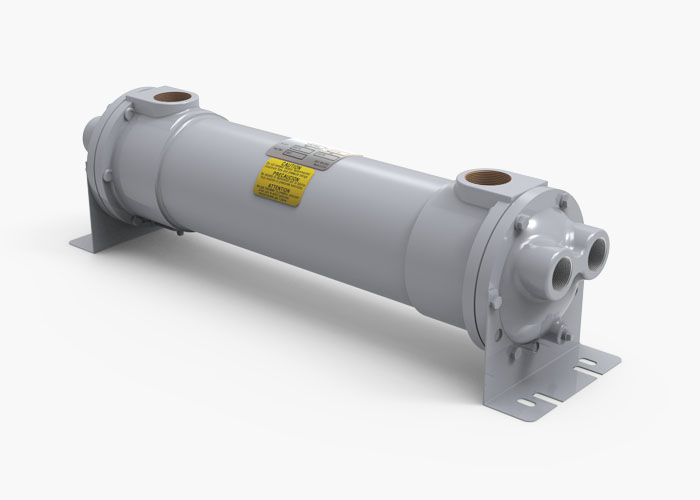

Note: Featured picture is of a stock unit, exact unit details may vary from part number STS-1601-E10-FP.
Product Overview
P/N:
STS-1601-E10-FP
Shell and Tube Series:
STS-1606
Manufacturer:
American Industrial Heat Transfer
Configuration
Tube Side Passes:
Four
Baffle Spacing:
18"
Tubing Diameter:
0.625
Materials of Construction
- Tubes: Stainless Steel
- Tubesheet: Stainless Steel
- Shell: Stainless Steel
- Baffles: Stainless Steel
- End Bonnets: Stainless Steel
Rating
- Maximum Shell Pressure: 300 psi
- Maximum Tube Pressure: 150 psi
- Maximum Temperature: 300F
